Hinges

We recommend three hinges for doors up to 84. Doors larger than 84" require at least four hinges.

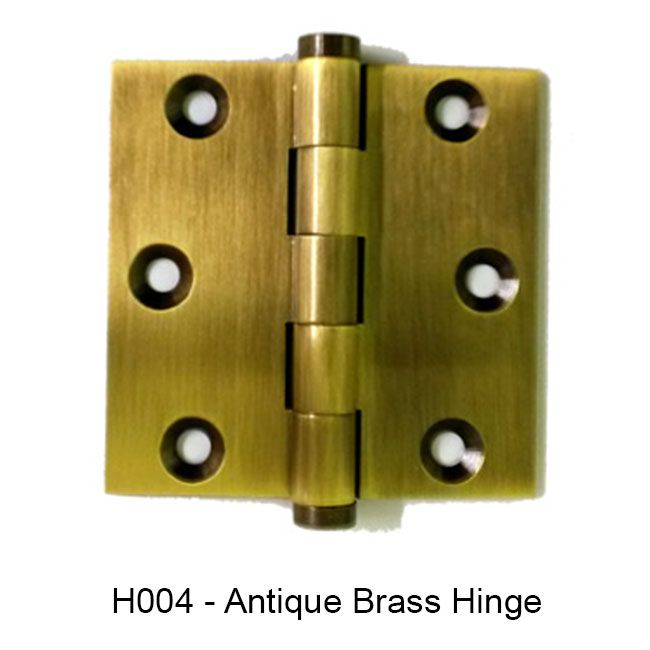

• Loose Pin Hinge: Solid brass construction with loose pin for ease of door removal. Hinges are 3” x 3” and come with screws for mounting.
• Spring Loaded Hinge: 3.5” x 3.5” adjustable spring tension hinge. This allows the door to close automatically without the need for a pneumatic closer. *Spring loaded hinges are not for use with glass.

Mortise For Hinges

• A mortise (sounds like mor-tuhs) is a small pocket drilled into the wood. The latch will sit in this pocket, keeping it very secure.
• Side determined standing outside looking in.
• One mortise will be placed 6” from the top, one will be 6” from the bottom, and one will be on center.
